Last Updated: March 10, 2023 If you are considering to buy the best esr meter, you should go through this product guide.
In Hurry? Checkout Our Top Pick Of Best Esr Meter.
Our Top Pick
9.7/10 our score
Best Esr Meter
| Rank | Product Name | Score |
|---|---|---|
|
1
|
Atlas ESR70
|
9. 7
|
|
2
|
Signstek MESR-100 V2 Auto Ranging in Circuit ESR LCR Meter Capacitor / Low Ohm Meter Up to 0.01 to 100R, Support in Circuit Testing
|
9. 5
|
|
3
|
Blue ESR Tester - Fully Assembled
|
9. 1
|
|
4
|
DE-5000 Handheld LCR Meter
|
8. 8
|
|
5
|
GME Professional in Circuit ESR Capacitor Tester, Capacitance Meter, Designed and Engineered in the USA
|
8. 6
|
|
6
|
Transistor Tester, DROK Mosfet Transistor Capacitor Tester, Mega328 NPN PNP Transistor Diode Resistor Inductor Capacitance MOS SCR ESR Meter Automatic Checker Detector
|
8. 2
|
|
7
|
BSIDE ESR02 PRO Digital Transistor Tester SMD Components Meter Mega328 NPN/PNP Diode Triode Capacitor Inductance ESR Checker with Tweezers
|
8. 0
|
|
8
|
Transistor Meter, Aideepen LCR-TC1 Multi-Function Capacitance Resistance ESR Tester 1.8" Full Color Display Transistor Meter for Diode Triode Capacitor Resistor Transistor LCR ESR NPN PNP MOSFET
|
7 .7
|
|
9
|
MESR-100 Capacitor Tester,Geevorks Circuit Tester Ohm Meter 0.001-100.0R with SMD Test Clip,Auto-Ranging Capacitor for Measuring Capacitance Resistance Circuit
|
7. 4
|
|
10
|
MESR-100 Capacitor Tester, Geevorks ESR Meter in Circuit Capacitor Tester Up to 0.001-100.0R, Auto-Ranging Ohm Meter
|
7. 2
|
1. Atlas ESR70
1
9.7/10 our score
Features
- Measure capacitance and ESR
- Suitable for any capacitor type between 1uF and 22000uF including motor capacitors, smoothing capacitors, electrolytics, polypropylenes, in fact any dielectric type
- New enhanced dynamic range of 0.00 to 40.0 ohms
- ESR Resolution as fine as 0.01 ohms
- Audible alerts for various ESR levels

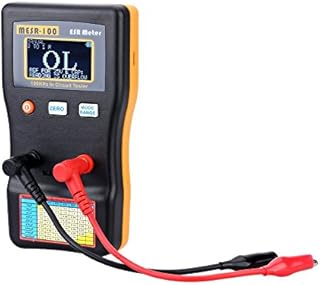

2. Signstek MESR-100 V2 Auto Ranging in Circuit ESR LCR Meter Capacitor / Low Ohm Meter Up to 0.01 to 100R, Support in Circuit Testing
2
9.5/10 our score
Features
- Using true 100 KHz sine wave to measure the ESR value, which is equal to the testing method of capacitor manufacturer.
- Dual terminal, for fast and easy inspect general capacitor or resistor, a printed ESR table for fast check.
- Measuring range from 0.001 to 100.0R, support IN CIRCUIT Testing.
- Auto-ranging capacitor ESR and Low Ohm Meter.
- Wide Measurement Range
3. Blue ESR Tester - Fully Assembled
3
9.1/10 our score
Features
- Meter accuracy tests ESR of >1uF electrolytics in circuit, +/- 0.01 ohm.
- Non polarized 2' test leads with resistance compensation, improves fine accuracy
- Automatic power off when reading is unchanged for 3 minutes, preserves battery life
- Easy-to-read, high brightness 0.5 inch (13mm) piercing blue LED display
- Fully assembled with 1yr warranty for manufacturing defects, made in USA
4. DE-5000 Handheld LCR Meter
4
8.8/10 our score
Features
- This LCR Meter is a 19999/ 9999 counts dual display, high accuracy LCR meter, which could measure Inductance/ Capacitance/ Resistance with secondary parameters including dissipation factor (D), quality factor (Q), phase angle , equivalent series/ parallel resistance (ESR or Rp).
- This LCR Meter is fully auto ranging operation for AC impedance & DC resistance measurement. The user could measure the L/C/R components directly in “AUTO-LCR “ smart mode without selecting the function key.
- Components could be measured in serial or parallel mode according to the DUT (device under test) impedance automatically.User could select the desired test frequencies of 100Hz/120Hz/1kHz/10kHz /100kHz.
- The "Sorting"mode could help the user to make a quick sort for a bunch of components.
- Standard Accessories: English PDF manual, DC9V Battery, Alligator test lead case(TL-21), SMD Tweezers case(TL-22), Guard Line(TL-23),,,,, Option: IR to USB cace *It isn't included.
5. GME Professional in Circuit ESR Capacitor Tester, Capacitance Meter, Designed and Engineered in the USA
5
8.6/10 our score
Features
- DESIGNED AND ENGINEERED IN THE USA: GME Professional in Circuit ESR capacitor tester designed and supported in the USA, compare to most other ESR meters on the market that are generic private label import with unknown manufacturer and no support or warranty
- ACCURATE MICROPROCESSOR CONTROLLED: Microprocessor generated 100 kHz output test frequency and low 15 mVp-p output test voltage that will not turn on any solid state devices during testing, critical for accurate test result in circuitry with active components
- INTELLIGENT DESIGN: ESR capacitor tester automatically discharges capacitor under test, Audible buzzer announces ESR range during testing allows quick checking of entire PCB in seconds, Intelligent automatic calibration on power up, no manual zero needed unlike many other ESR meters
- WIDE RANGE IN-CIRCUIT ESR & DCR TESTING: Tester meter measures ESR (equivalent Series Resistance) on capacitors range from 0.47µF to 2200µF, in or out of circuit
- EASY TO USE, PORTABLE, AND RUGGED DESIGN: Easy One-Handed Tweezers with gold plated tips and extra-long cable, Non polarity dependent test probe, eliminates the need for polarity checking
6. Transistor Tester, DROK Mosfet Transistor Capacitor Tester, Mega328 NPN PNP Transistor Diode Resistor Inductor Capacitance MOS SCR ESR Meter Automatic Checker Detector
6
8.2/10 our score
Features
- ✔ WIDE APPLICATION: This multifunctional capacitance meter can be used to test triode, field-effect tube(FET), diode, resistor, capacitor, inductor, MOS, SCR, which is available for various electric transistor testing.
- ✔ LARGE & CLEAR LCD DIGITAL DISPLAY: This amazing detector adopts 1.8" TFT color LCD screen with high-resolution. Besides, different parameter is shown with different color, convenient and simple for you to check the parameter.
- ✔ AUTOMATICAL IDENTIFICATION: DROK intelligent transistor checker is able to detect NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, thyristors, resistors, capacitors or other devices automatically.
- ✔ BATTERY POWERED: This monitor is powered by DC9V battery (not included).
- ✔ AUTO SHUT-DOWN FUNCTION: Our advanced electronic transistor tester owns auto shut-down function. There is shutdown countdown displayed on the monitor and the shutdown countdown time can be extended to 40s.
7. BSIDE ESR02 PRO Digital Transistor Tester SMD Components Meter Mega328 NPN/PNP Diode Triode Capacitor Inductance ESR Checker with Tweezers
7
8/10 our score
Features
8. Transistor Meter, Aideepen LCR-TC1 Multi-Function Capacitance Resistance ESR Tester 1.8" Full Color Display Transistor Meter for Diode Triode Capacitor Resistor Transistor LCR ESR NPN PNP MOSFET
8
7.7/10 our score
Features
- Wild Application::1.8" Full Color Display,Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFET, diode (including double diode), thyristor, Mega328,BJT, resistor and capacitor and various electric transistor testing.
- Built-in Battery::Built-in lithium battery, convenient and effective, the indicator light shows green when fully charged. Warm Reminder: The charging input voltage is 4.5V, please do not use it under overpressure, otherwise the tester will be damaged.
- Add IR Decoder:: After the component detection is completed, the infrared remote control at the tester "IR" test hole, press the remote control key, the tester will be display the user code & data code and the corresponding infrared waveform after the successful decoding
- Auto shut-down Function:: Our advanced electronic transistor tester owns auto shut-down function.Convenient and practical.
- Extra accessories:: use accessories, more convenient and efficient to complete your project(Please refer "Product guides and documents"to get user manual)
9. MESR-100 Capacitor Tester,Geevorks Circuit Tester Ohm Meter 0.001-100.0R with SMD Test Clip,Auto-Ranging Capacitor for Measuring Capacitance Resistance Circuit
9
7.4/10 our score
Features
- This MESR-100 V2 auto-ranging capacitor ESR and low Ohm meter measuring range is 0.001-100.0R, support in circuit testing.
- It is the series resistance inside the capacitor, and 100kHz is used to remove the impedance 1/(2*pi*F*C). When the impedance becomes smaller, the real series resistance value can be measured to determine whether the capacitor is bad/damaged or in good condition.
- Our ESR meter only applies less than 15mV DC or peak to peak on a good capacitor, as a result we can use it as in circuit test.
- During repairing TV, LCD, Audio board, etc. we can in circuit testing the capacitor is good or not.Note:The Capacitance Meter is used for testing the internal resistance of the capacitor, not for testing capacitance value.:
- Dual terminal, for fast and easy inspect general capacitor or resistor, a printed ESR table for fast check.Equipped with a SMD alligator clip for more accurately testing.

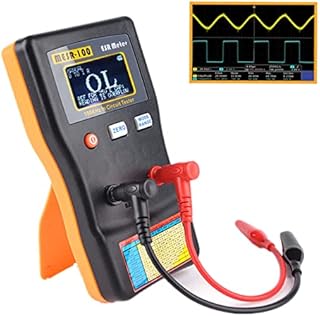

10. MESR-100 Capacitor Tester, Geevorks ESR Meter in Circuit Capacitor Tester Up to 0.001-100.0R, Auto-Ranging Ohm Meter
10
7.2/10 our score
Features
- This MESR-100 auto-ranging capacitor ESR and low Ohm meter measuring range from 0.001 to 100.0R, support in circuit testing.
- Capacitance meter is a series resistor inside capacitor, using 100kHz to remove the impedance 1/(2*pi*F*C).The impedance become small, and we can then measure the true series resistor value.
- Our ESR meter only applies less than 15mV DC or peak to peak on a good capacitor, as a r-esult we can use it as in circuit test.
- Dual terminal, for fast and easy inspect internal resistance of the capacitor, a printed ESR table for fast check.
- Note:The Capacitance Meter is used for testing the internal resistance of the capacitor, not for testing capacitance value.Note: without SMD test clips
